Sphincterotome /short-wire compatible

The Device is intended for selective cannulation of the biliary ducts and transendoscopic sphincterotomy of the Sphincter of Oddi. It can also be used to inject contrast medium.

Product highlights:

Tapered tip design supports cannulation and controlled cutting
3-lumen design accommodates guide wire, cutting wire, and contrast medium injection
C-channel design supports smooth peel-off
Short-wire compatible; designed to support procedural workflow

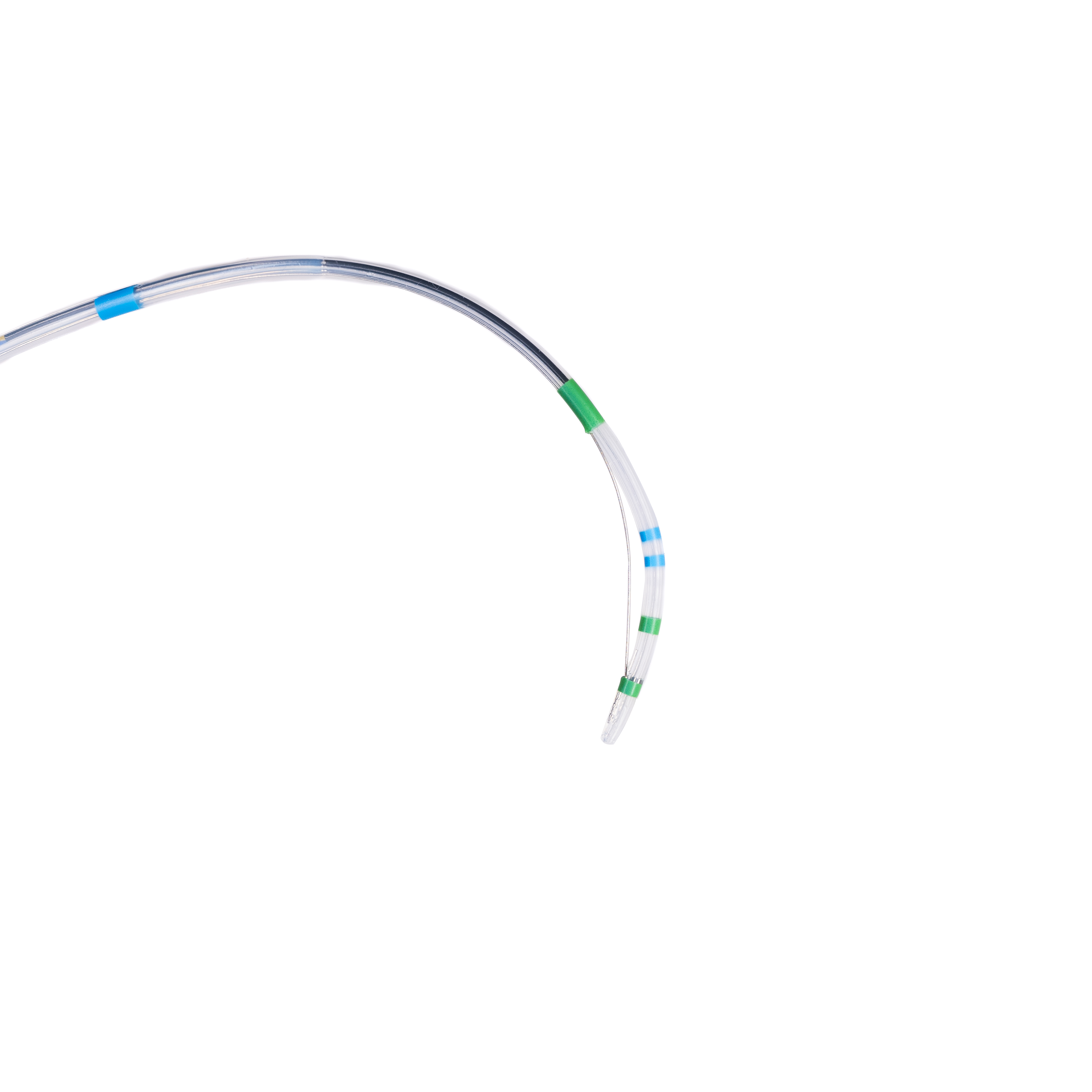

Pre-shaped tip oriented toward the 11 o’clock position for controlled cutting
The insulated coating on the proximal portion of the cutting wire is designed to help reduce the risk of over-cutting

Speciality: Gastroenterology, Hepatobiliary & Pancreatic Surgery

Product Type:Sphincterotomes (Papillotomes)

Instructions for use

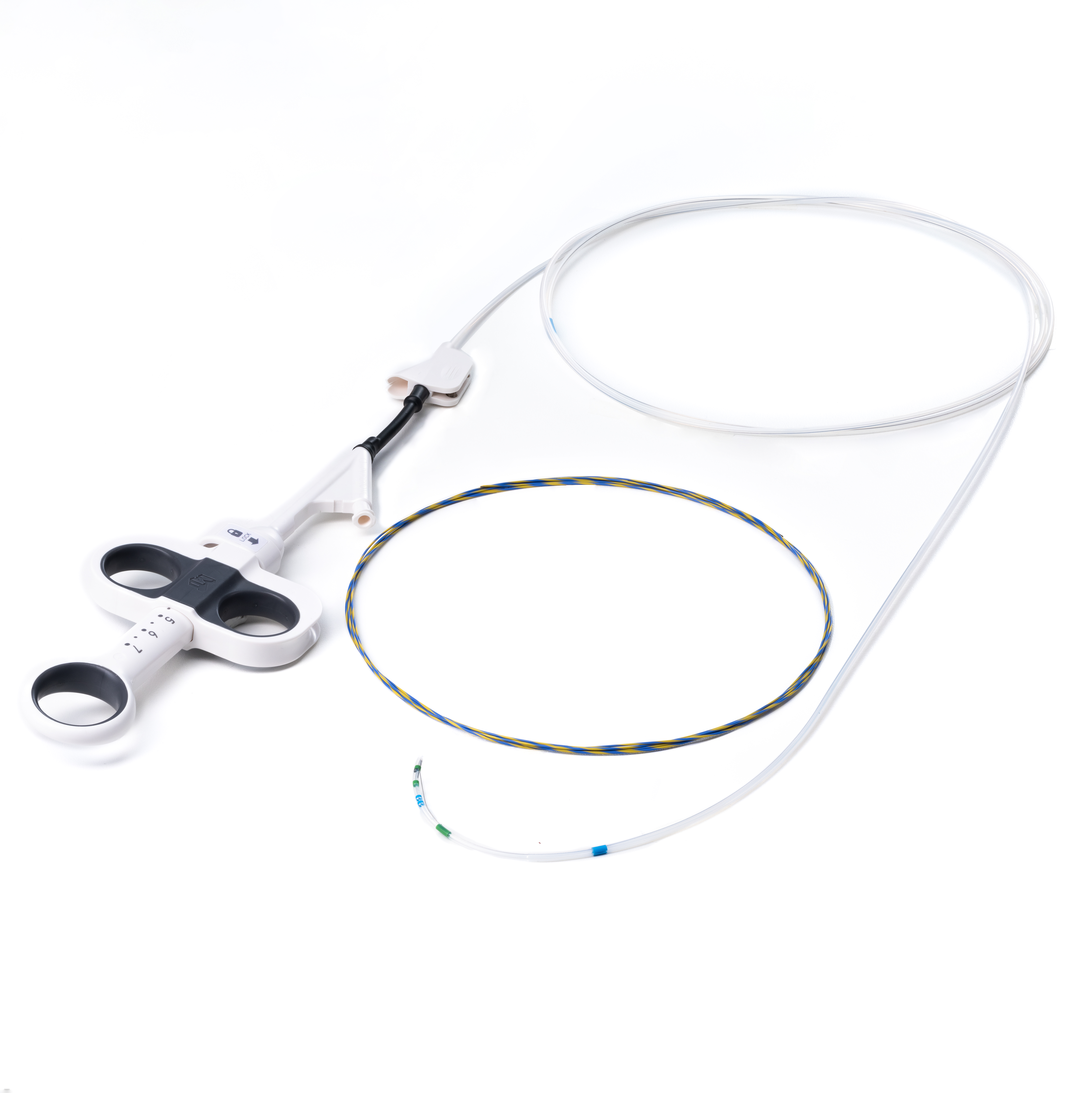

Description

Intended for selective cannulation of the biliary ducts and sphincterotomy of the Oddi, while also capable of injecting contrast medium.
Short-wire compatible and compatible with endoscopes featuring a working channel of ≥3.2mm.
Offers a variety of model options, including with or without an insulation coat, pre-loaded guidewire lengths (2600mm/4500mm), and cutting wire types (Single/Weave) to accommodate diverse clinical needs.
Available with different cutting wire lengths (20/25/30mm) and a cone-shaped tip to support positioning and operation.

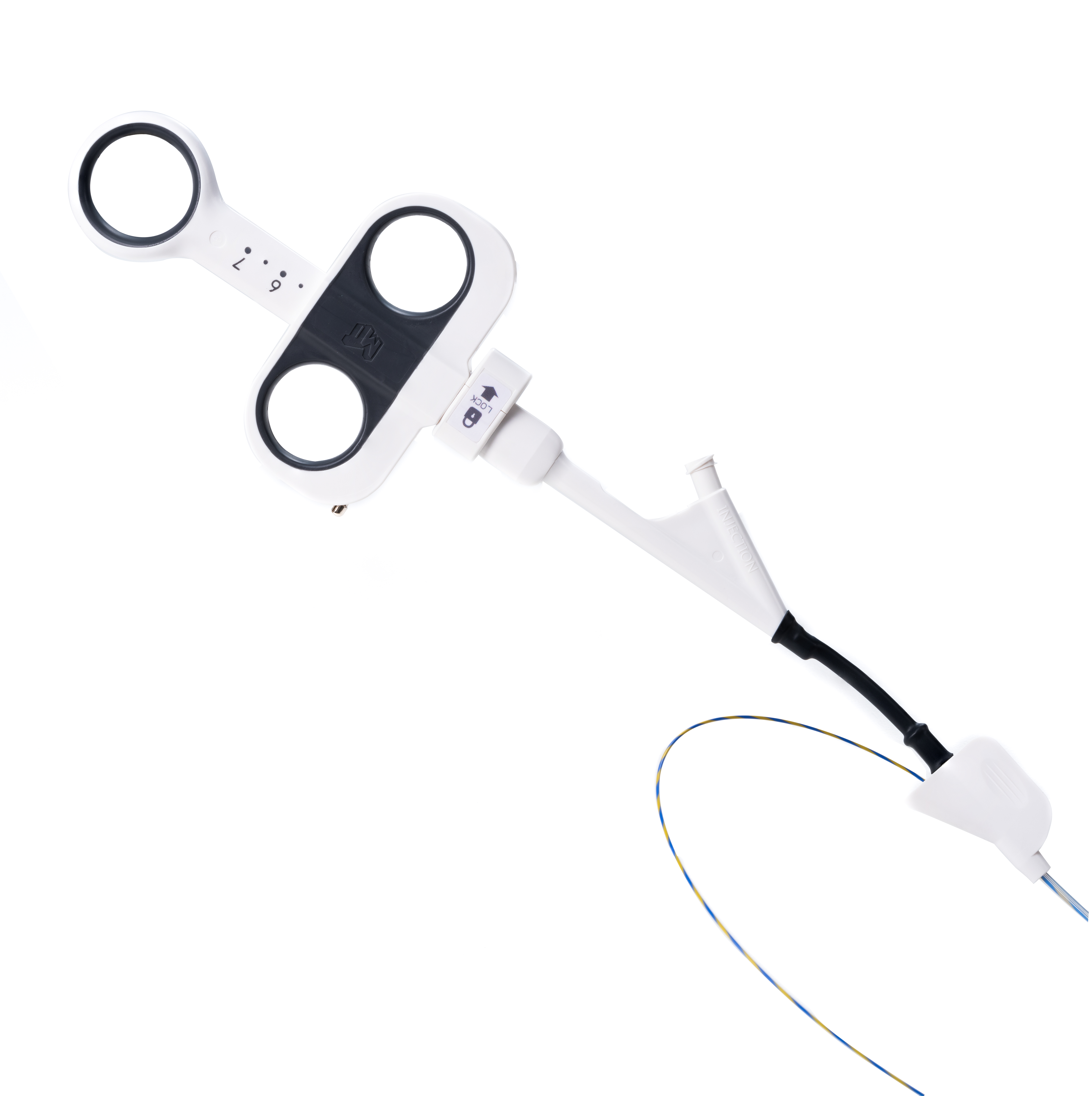

The operation handle allows for left and right rotation to adjust the cutting wire orientation.
